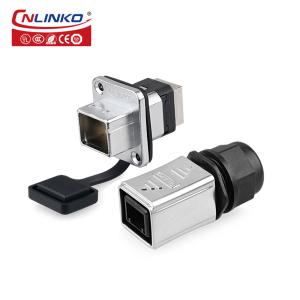

According to EIA568B each ISO/IEC11801 standard conforms to D grade or CAT3e, compatible with CAT5e.
D-panel connectors, metal housing and locking system are available.
Shielding system - high frequency noise immunity and electromagnetic interference protection.
Push-pull design, safety lock system, straight-through or PCB transfer for optional installation.
The cable protector has a sturdy die-cast housing and a unique ferrule clip.
Waterproof and non-waterproof design, the product meets IP65/IP67 protection level in the assembled state.
The rugged connection system provides a solution for broadband data transmission in harsh environments.
The connector does not have a network cable and a crystal head.
| Specifications | |
| Connecting mode | Latching Lock connect |
| Protection level | IP67 |
| Cable specification | 26~24AWG |
| Diameter range | Φ5.5mm ~Φ7mm |
| Contact diameter×Qty | 8 Pin |
| Current rating(A) | 5A |
| Operating voltage(AC.V.rms) | 1000V |
| Withstand voltage(AC.V)1min | / |
| Contact resistance | <30mΩ |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Method of connecting cable | Solder |
| Prevent the combustion level | UL94-V0 |
| Material | |
| Shell&insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated) |
| Spring | Stainless steel |
| Sealing | Silica gel |
| Main characteristics | |
| Sealed against dust and fluid (IP65/IP67) | |
| Vibration resistance,impact resistance,stretching resistance | |
| 1/4 bayonet connect; socket with cover | |
| Application industries | |
| Stage equipment - The smart grid | |
| Medical equipment - Server | |
| Solar energy equipment - Ship equipment | |
| Electric power equipment - Vehicle equipment | |
| Communications equipment - Heavy machinery | |
